Comprehensive Guide to Laser Welding: Processes, Applications, and Solutions

Laser welding is an advanced industrial joining process that uses a high-intensity, focused laser beam to fuse materials together, offering superior weld quality, precision, and speed compared to traditional welding techniques. With the increasing demand for efficient and accurate welding in industries such as automotive, aerospace, electronics, medical device manufacturing, and metal fabrication, understanding the fundamentals of laser welding, its modes, applications, and how to select the right laser welding services is crucial for buyers and engineers alike.

What Is Laser Welding?

Laser welding, sometimes referred to as laser beam welding (LBW), is a non-contact process that utilizes the thermal energy from a laser source to join metals or thermoplastics. The process is highly versatile and can be automated for high-volume production, making it ideal for applications requiring minimal distortion, tight tolerances, and repeatable results. Whether you’re considering fiber laser welding, Nd:YAG laser welding, or CO2 laser welding, the right technology can dramatically improve your manufacturing outcomes.

Modes of Laser Welding

Laser welding operates primarily in two fundamentally different modes: conduction-restricted (conduction-limited) and keyhole (penetration) welding. The choice of mode depends on the power density of the laser beam, which determines how it interacts with the workpiece and what type of weld is produced. Understanding these modes is essential for selecting the right process parameters and achieving the desired weld quality.

Conduction-Limited Welding

Conduction-limited welding occurs when the laser’s power density is less than 10⁵ W/cm². In this mode, the laser energy is absorbed at the surface of the material and does not penetrate deeply. Heat conduction into the material causes melting and fusion, resulting in welds with a large width-to-depth ratio. This method is suitable for thin sheets, delicate components, and applications where minimal penetration is required, such as in micro-welding and electronics assembly.

Keyhole (Penetration) Welding

Keyhole welding is achieved at higher power densities—typically greater than 10⁶ to 10⁷ W/cm². The focused laser beam melts and vaporizes the material, forming a deep, narrow cavity known as the "keyhole." This keyhole is stabilized by metal vapor or plasma, allowing the laser to couple more efficiently with the workpiece. The result is a deep penetration weld with a high depth-to-width ratio, ideal for thick materials and structural components. Keyhole welding is widely used in automotive body manufacturing, aerospace structures, and precision fabrication where strong, narrow welds are required.

As the keyhole moves along the joint, molten metal flows around the cavity and solidifies at the trailing edge, forming the weld bead. The rapid solidification often creates a distinctive chevron pattern on the weld cap, indicating the direction of travel.

The Laser Welding Process Explained

Laser welding relies on a highly concentrated beam of coherent light, delivered through optical systems such as mirrors or fiber optics, to generate intense heat at the welding site. The process can be finely controlled for pinpoint accuracy, enabling the joining of intricate assemblies and delicate components. Let’s explore the key steps and equipment involved in modern laser welding systems:

• Laser Source: Common types include fiber lasers, Nd:YAG (neodymium-doped yttrium aluminum garnet) lasers, and CO₂ lasers. Each laser type offers unique advantages for different metals and thicknesses.
• Beam Delivery: Optical fibers or articulated arms guide the laser beam to the weld site, ensuring consistent delivery for robotic and automated welding systems.
• Focusing Optics: Collimators and lenses focus the beam to a precise spot size, maximizing energy density and penetration depth.
• Motion & Positioning Systems: CNC machines, robotics, and programmable stages move the workpiece or laser head for high repeatability and complex weld geometries.
• Shielding Gas: Inert gases such as argon, helium, or nitrogen may be used to protect the weld pool from oxidation and contamination.

Laser welding is also compatible with a wide range of materials, including stainless steel, aluminum alloys, titanium, copper, nickel alloys, and certain plastics. The process can be performed in both pulsed and continuous wave modes, allowing for customization based on the application’s requirements.

Hybrid Laser Arc Welding

To combine the advantages of both laser and traditional arc welding methods, hybrid laser arc welding techniques have emerged. By integrating processes such as MIG (metal inert gas), TIG (tungsten inert gas), or SAW (submerged arc welding) with deep penetration laser welding, manufacturers can achieve welds with enhanced joint fit-up tolerance, deeper penetration, and reduced risk of defects like cracking or porosity. Hybrid welding is especially useful for thick sections, dissimilar material joining, and applications demanding high productivity and minimal rework.

Common Laser Welding Applications

Laser welding has revolutionized manufacturing in numerous industries by offering unparalleled precision, speed, and flexibility. Here are some of the most prominent laser welding applications:

• Automotive Manufacturing: Used extensively for body assembly, transmission components, battery housings (for electric vehicles), and safety-critical structures. Laser welding enables lightweight design and high-strength joints.
• Aerospace & Defense: Essential for joining turbine blades, fuel tanks, and airframe structures where weight savings and fatigue resistance are paramount.
• Electronics: Employed in micro-welding of sensors, batteries, connectors, and circuit boards due to its low heat input and minimal distortion.
• Medical Devices: Provides biocompatible, hermetically sealed joints in surgical instruments, implants, and diagnostic equipment, critical for patient safety and regulatory compliance.
• Jewelry & Watchmaking: Allows for precise, aesthetic joins in precious metals without damaging delicate surfaces.
• Tool & Die Making: Used for repair and modification of molds, dies, and precision tooling with minimal material loss.
• Renewable Energy: Applied in solar panel fabrication, battery pack assembly, and wind turbine component production.

Are you searching for the best laser welding solution for your industry? Explore how to select the right service provider below.

Types of Laser Weld Joints and Their Use Cases

There are several primary types of laser weld joints, each optimized for specific applications and strength requirements. Selecting the right joint geometry is a key decision factor for engineers and buyers evaluating laser welding services:

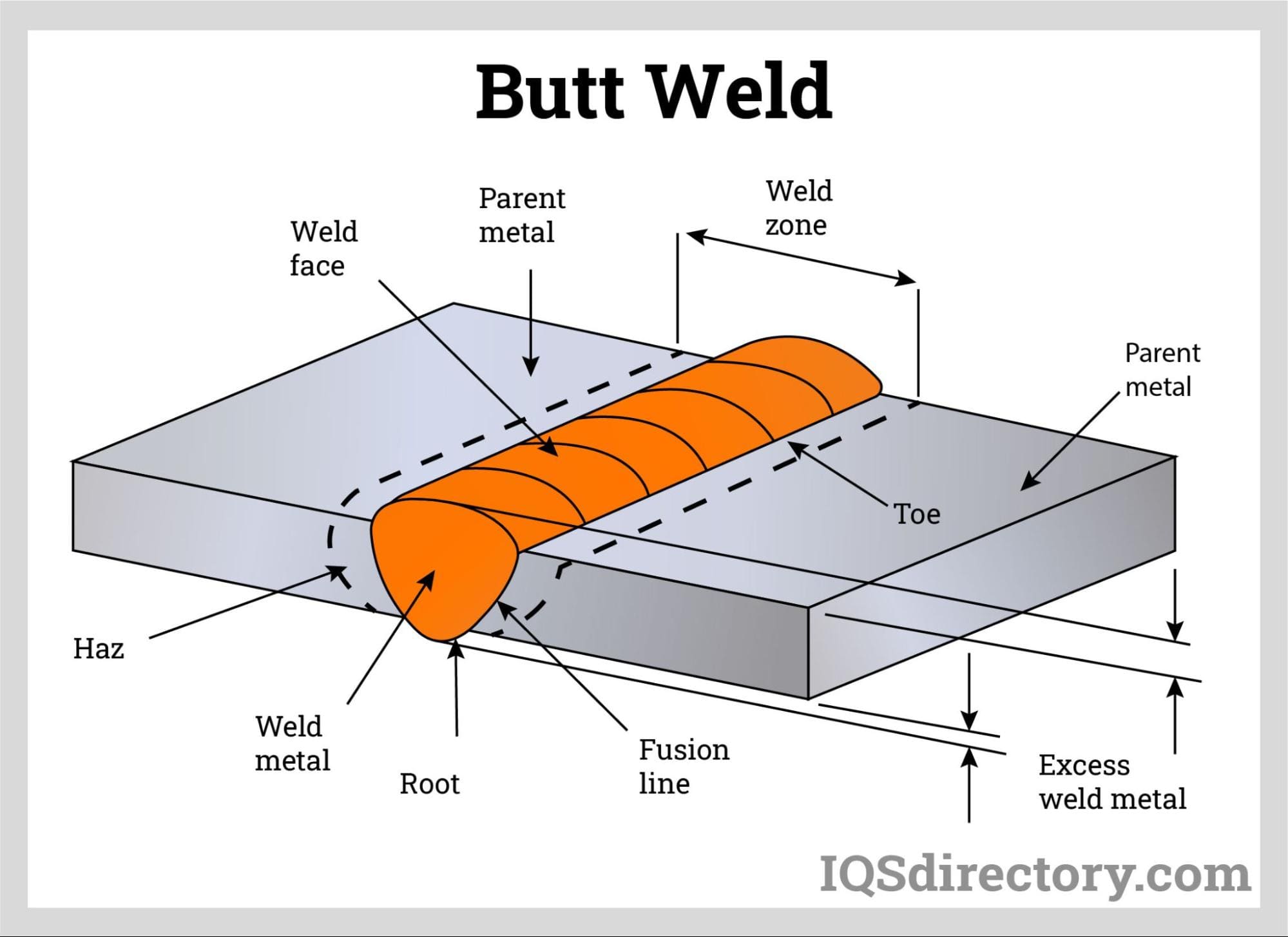

Butt Weld

The butt weld is formed by joining two components edge-to-edge. It offers the highest weld strength for a given depth of penetration and is preferred when maximizing mechanical performance and minimizing material usage. However, butt welds are less forgiving of poor fit-up and require precise alignment and preparation. Common use cases include joining sheet metals, frames, and tubular structures in automotive and aerospace manufacturing.

Lap Weld

Lap welds are formed by overlapping two materials and welding along their interface. This configuration is more forgiving of variations in fit-up and is suitable for joining thin to thick materials. Lap welds are extensively used in battery tab welding, electronics assembly, and joining dissimilar materials where surface accessibility is limited.

Fillet Weld

Fillet welds involve joining two surfaces at an approximate right angle. Laser fillet welds can be optimized for strength or accessibility, depending on the angle of laser incidence. While more complex to program in automated systems, fillet welds are useful for joining flanges, brackets, and enclosures in metal fabrication. For optimal results, the laser beam may be angled toward the workpiece, which can increase the process complexity but allows for thicker components.

Other Joint Types

• Edge Welds: Used for joining the edges of thin sheets or foils, common in battery pack and enclosure manufacturing.
• Seam Welding: Produces continuous, leak-tight joints in applications such as fuel tanks, heat exchangers, and hermetic electronic enclosures.
• Spot Welding: Delivers discrete welds at specific points, suitable for high-speed automation and joining small components.

Curious about which joint type is best suited for your project? Contact a laser welding specialist for a custom recommendation.

Types of Laser Sources Used in Welding

Choosing the appropriate laser source is critical for achieving optimal weld quality, efficiency, and cost-effectiveness. The main types of lasers used in welding applications include:

• Fiber Lasers: Offer high beam quality, energy efficiency, and long operational life. Ideal for high-speed, automated welding of metals such as stainless steel, aluminum, and copper. Fiber laser welding is gaining popularity in automotive, electronics, and battery manufacturing due to its versatility and low maintenance.
• Nd:YAG Lasers: Provide pulsed or continuous wave operation and are suitable for precision welding of thin materials, medical devices, and jewelry. Nd:YAG lasers excel in spot and seam welding of reflective or delicate metals.
• CO₂ Lasers: Used for deep penetration welding of thicker materials, especially in heavy industry and fabrication of large assemblies. These lasers emit infrared light that is well-absorbed by most metals.
• Diode Lasers: Compact and efficient for small-scale welding and plastics joining, often integrated into automated production lines and micro-welding applications.

Advantages of Laser Welding

Laser welding offers a range of unique benefits that make it attractive for advanced manufacturing and high-precision assembly:

• Exceptional speed and productivity: Laser welding can be up to eight times faster than TIG welding and twice as fast as plasma welding, reducing cycle times and increasing throughput.
• Minimal distortion and heat-affected zone (HAZ): The highly focused beam limits heat input, preserving base material properties and reducing post-weld finishing requirements.
• Non-contact, hygienic process: Ideal for cleanroom environments, medical devices, and food-grade equipment manufacturing.
• Tight dimensional tolerances: Enables consistent, repeatable welds for parts requiring high accuracy.
• Ability to join dissimilar or difficult-to-weld materials: Laser welding can successfully join metals with vastly different melting points and thermal conductivities.
• Automation compatibility: Easily integrated into robotic cells and CNC systems for high-volume, lights-out production.
• Versatility: Effective for micro-welding, macro-welding, and everything in between, from fine wires to large structural components.

Want to learn how laser welding can optimize your manufacturing process? Request a quote from top laser welding providers today.

Disadvantages and Limitations of Laser Welding

• High equipment cost: Initial investment for laser welding machines and supporting infrastructure can be substantial, though often offset by long-term productivity gains.
• Significant energy consumption: Laser welding systems require considerable electrical power, especially for thick or highly reflective metals.
• Not suitable for very thick sections: There are practical limits to penetration depth, making traditional welding methods preferable for extremely thick components.
• Potential for thermal cracking and hardening: Rapid cooling can lead to undesirable microstructures in some metals, particularly hardened steels and high-carbon alloys.
• Health and safety risks: Operators must implement controls to manage laser radiation, fumes, and electrical hazards. Proper training and protective equipment are mandatory.
• Requires precise part fit-up: Laser welding is less forgiving of gaps and misalignments compared to traditional methods, necessitating careful preparation and fixturing.

Evaluating the suitability of laser welding for your application? Consult with a certified laser welding expert for a thorough assessment.

Laser Welding in Electronics and Microfabrication

With the ongoing miniaturization of electronic devices and the demand for high-density packaging, laser welding has become indispensable for electronics manufacturing. Micro-welding applications include:

• Bonding fine wires and leads in sensors, diodes, and integrated circuits
• Hermetic sealing of microelectronics to protect against moisture and contaminants
• Joining delicate foils and thin films with minimal thermal impact
• Battery tab welding in consumer electronics and electric vehicles

Laser welding’s non-contact nature and low heat input make it ideal for sensitive components, helping manufacturers achieve higher yields and reliability.

Key Considerations When Selecting a Laser Welding Service

Choosing the right laser welding partner is a critical step that can impact product quality, cost, and delivery timelines. Here are essential factors to consider when researching laser welding companies and services:

• Technical expertise: Does the provider have experience with your materials, component geometries, and required weld types?
• Equipment capabilities: What types of laser sources and automation does the shop offer? Can they accommodate your production volume and part size?
• Quality assurance: Are they certified to ISO 9001, AS9100, or relevant industry standards? Do they offer weld inspection, testing, and documentation?
• Process development support: Will the company help with prototyping, process optimization, and validation for your specific application?
• Lead times and flexibility: Can they handle rush orders or low-to-high production runs?
• Customer reviews and references: What do other clients say about their service, communication, and results?

Ready to compare laser welding services? Browse our directory of vetted providers and request quotes with a single form.

Choosing the Right Laser Welding Company

To ensure you have the most beneficial outcome when selecting a laser welding company, it is important to compare several businesses using our directory of laser welding companies. Each laser welding company has a business profile page highlighting their areas of experience and capabilities, along with a contact form to directly communicate with the business for more information or request a quote. Review each laser welding company website using our patented website previewer to quickly learn what each company specializes in. Then use our simple RFQ form to contact multiple laser welding businesses with the same form.

Maximize your project’s success by asking questions such as:

• What types of laser welding technology do you specialize in?
• Can you provide sample welds or case studies relevant to my application?
• How do you ensure quality and consistency for high-volume production?
• What is your typical turnaround time for prototyping and full production?
• Do you offer value-added services such as design for manufacturability (DFM), finishing, or secondary operations?

By thoroughly researching and engaging with potential providers, you’ll be equipped to make an informed decision and achieve the best possible results for your laser welding needs.

Frequently Asked Questions About Laser Welding

How does laser welding compare to traditional welding methods?

Laser welding offers higher speed, precision, and automation potential compared to MIG, TIG, and resistance welding. It minimizes heat input, resulting in less distortion and post-processing. However, it requires greater upfront investment and is best suited for applications demanding tight tolerances and high repeatability.

What materials can be laser welded?

Most metals—including stainless steel, aluminum, titanium, copper, nickel alloys, and precious metals—as well as certain plastics and composites can be laser welded. The choice of laser source and process parameters must be matched to the material’s properties for optimal results.

Is laser welding safe?

Yes, when performed by trained personnel with proper safety protocols in place, including the use of laser enclosures, interlocks, protective eyewear, and fume extraction systems. Laser welding systems must comply with relevant safety standards (such as ANSI Z136).

What is the cost of laser welding?

The cost depends on factors such as part complexity, material type, production volume, and required quality standards. While equipment investment is higher, the process can deliver lower total cost of ownership due to speed, automation, and reduced rework.

Can laser welding be automated?

Absolutely. Laser welding is highly compatible with robotic and CNC automation, enabling 24/7 lights-out production for mass manufacturing as well as flexible, small-batch runs.
